Product description
Specifications
Articles and guides
ReviewsAn additional 9 stops
The filter transmits approximately 0.2% of light without having to replace your existing VND filter.
This product is not a standalone functional unit; an additional product is needed for proper operation, e.g..
VFFOTO magnetický variabilní ND filtr 2-32x NANO-PRO TC 82 mm
or VFFOTO 77 mm hybrid variable ND filter 2–32× NANO-PRO TC
or VFFOTO 86 mm adapter for magnetic filter
EAN: 8594177456668
VFFOTO 86 mm magnetic ND filter 512x NANO-PRO US 86 mm for VND filters
VFFOTO 86 mm ND 512× NANO-PRO US filter for VND filters
Four key features
- Long exposures even in daylightAllows exposures 9 stops longer for smooth water, blurred clouds and capturing motion.
- Extend your VND rangeCombined with VND 2–32×, it provides a 10–14-stop range with precise exposure adjustment.
- Quick magnetic attachmentAttaches easily to the front magnetic interface of a compatible VFFOTO VND filter.
- Ultra-slim US designThe low-profile frame keeps your setup compact when combined with a variable ND filter.
VFFOTO ND 512× NANO-PRO US
Diameter: 86 mm
Effect: ND 512× / 9 stops
Extended VND range.
Minimal added height.
The VFFOTO magnetic ND 512× filter is primarily designed to extend the range of compatible VFFOTO VND filters. It adds 9 stops, extending the nominal range from VND 2–32× to ND 1,024–16,384×. With a magnetic adapter of the same diameter, it can also be used as a standalone ND 512× filter.
Photo: Vladimír Fučík
Check compatibility first
Will the filter fit your setup?
Choose the extension filter according to the diameter of the VND filter’s front magnetic interface, rather than the lens thread or the VND filter’s rear thread.
Hybrid VND filter with a 77 mm threadIts front magnetic interface has a diameter of 86 mm, making this 86 mm ND extension filter the correct match.View the 77 mm hybrid VND filter → VFFOTO 82 mm magnetic VND 2–32× NANO-PRO TC filterThe VFFOTO 82 mm magnetic VND filter also has an 86 mm front magnetic interface and is compatible with this 86 mm ND 512× extension filter.View the 82 mm magnetic VND filter →
Standalone useYou will need a VFFOTO 86 mm magnetic adapter. The adapter is not included.
Not sure? Send us the model name of your VND filter or a photograph of its front interface. Our technical support team will check compatibility.
Image comparison
Compare images without a filter and with VND + ND 512×.
Choose a comparison and drag the slider to examine detail, colour rendition and a real-world photograph.
Use the slider to compare detail rendition without a filter and with VND 32× + ND 512×.
Want the same control over your exposure?If you have confirmed a front magnetic diameter of 86 mm, this filter is suitable for your setup.
Add ND 512× to basketWho is this filter for?
Long exposures for landscape and creative photography.
ND 512× allows significantly longer exposures for creatively capturing the movement of water, clouds, people or traffic.
What do an additional 9 stops mean in practice?
At the same ISO and aperture, ND 512× increases the exposure time by a factor of 512. This is an illustrative example; the actual settings depend on the lighting conditions.
Without ND 512×1/1000 s→With ND 512×Approx. 1/2 s
Long exposure photographers
Significantly longer exposures, even in daylight, for creative use of motion.
Landscape and architecture photographers
Long exposures for creatively capturing moving water, clouds and the dynamics of the entire scene.
Water and cloud photographers
Blur the movement of water and clouds to enhance the atmosphere of the scene.
VND enthusiasts
Extend the range of your existing VND filter by 9 stops without having to buy a new one.
Extending the range
ND 512× extends VND 2–32× to ND 1,024–16,384×.
When the two filters are combined, their nominal filter factors multiply: ND 512× together with VND 2–32× provides a nominal range of ND 1,024–16,384×.
Continuous adjustment
Adjust the light reduction to suit the current lighting conditions.
An additional 9 stops
Quick magnetic attachment to the front of the VND filter.
Greater exposure control
For long and very long exposures in landscape and creative photography.
Note: The stated ND 1,024–16,384× range is based on the filters’ nominal ratings. The usable light reduction depends on the focal length, VND setting and the scene being photographed.

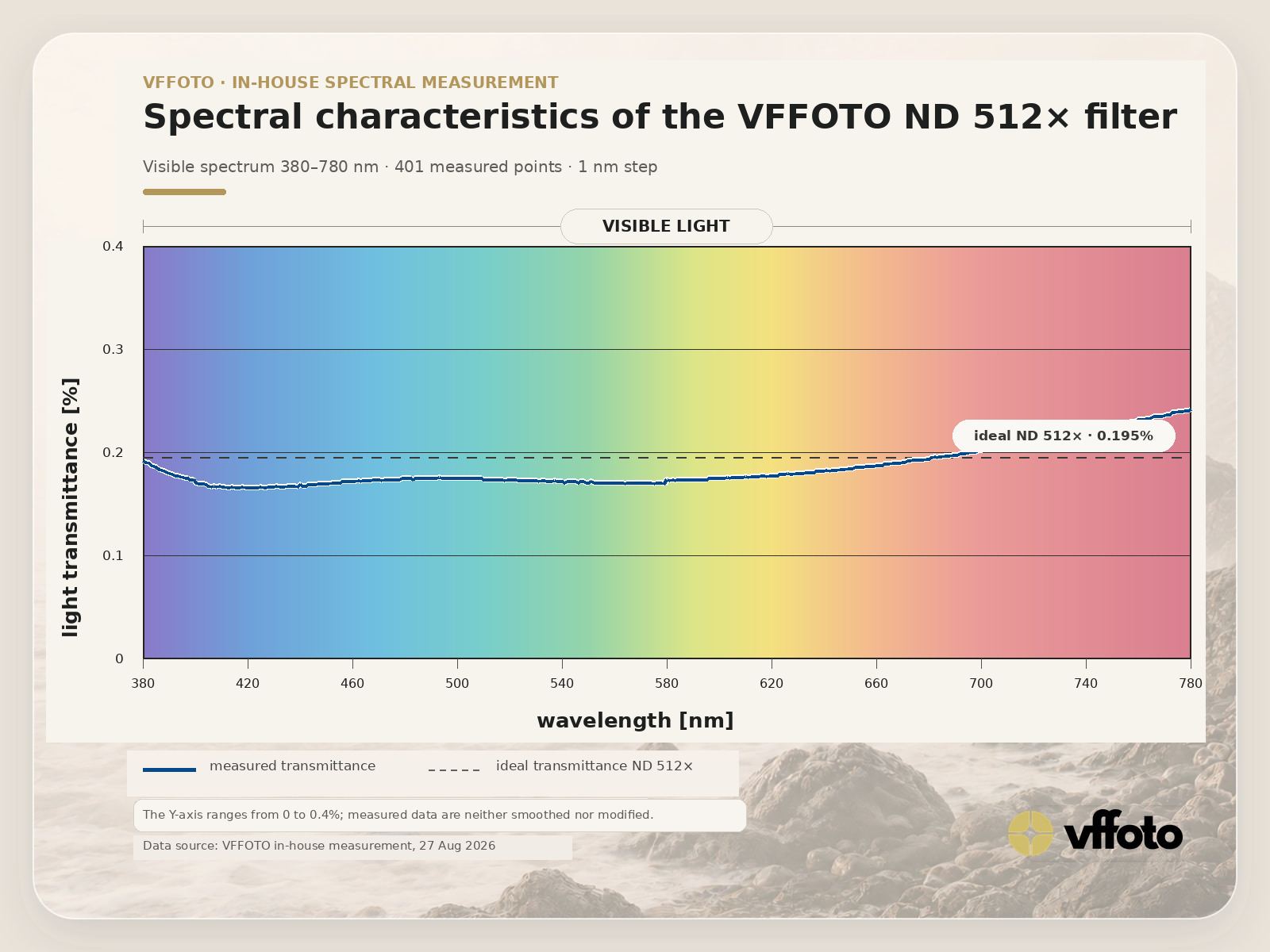

VFFOTO’s own spectral measurements
Transmission across the visible spectrum.
The graph shows measured transmission across the 380–780 nm range. Colour neutrality is primarily indicated by the uniformity of the curve across the visible spectrum. Its deviation from approximately 0.2% also indicates the actual density of the filter.
VFFOTO ND filter Calculator
Calculate your ND exposure time in seconds.
Meter the exposure without a filter, select your ND value and the calculator instantly displays the new exposure time. Use it at home or out in the field.
Quick calculationAndroid and iPhoneFree guide
Example with ND 512×
Without a filter1/125 s
→
With ND 512×Approx. 4.1 s
A 9-stop reduction in light allows an exposure time approximately 512× longer.
01
Mobile app
Android / Google Play
Scan the QR code or open the app directly in Google Play.
Open Google Play02
Mobile app
iPhone / App Store
Scan the QR code or open the calculator directly in the App Store.
Open App Store03
Practical help
User guide
A quick guide to entering the original exposure time, selecting your ND filter and reading the result.
Open guideScan the QR codes with your phone. On a mobile device, simply tap the relevant QR code or button.
Ultra-slim construction
Adds 2 mm to the setup when mounted.
The optical glass is 0.7 mm thick. Thanks to its ultra-slim frame, the filter adds 2 mm to the setup when mounted, helping to reduce the risk of mechanical vignetting.
Glass approximately 0.7 mm thickPremium optical glass in an exceptionally thin design.
Adds 2 mm to the setupWhen mounted, the filter adds 2 mm to the height of the VND setup.
NANO-PRO USMRC coatings reduce reflections, while special nano coatings make cleaning easier.
Illustrative photograph of the 95 mm version.
Package contents
Filter and VFFOTO calibration box.
1×
VFFOTO magnetic ND 512× filterNANO-PRO US filter with a nominal diameter of 86 mm.
1×
VFFOTO calibration boxProtective box with a grey reference surface.
For standalone use: A VFFOTO 86 mm magnetic adapter is required and is not included.
How the calibration box worksRecommended accessories
How to cover your setup safely.
A VFFOTO hybrid VND filter with the ND 512× extension attached is not compatible with the original lens cap. To cover the setup safely, use a compatible VFFOTO 86 mm magnetic protective cap with grip.
View the compatible cap
Safe use
Neither VND nor ND 512× is a solar filter.
VND and ND 512× photographic filters are not intended for direct solar observation and do not protect your eyes when looking at the Sun. A VND filter is not suitable for photographing a solar eclipse.
Need advice?
We are here to help.
If you are unsure about compatibility, choosing an ND extension filter or using it at a particular focal length, consult our FAQ, VFFOTO articles or technical support team.
ND and VND filter FAQ
Quick answers to questions about use, exposure, compatibility and combining fixed and variable ND filters.
Visit the FAQVariable ND filters
Practical articles on using variable ND filters, their limitations and suitable focal lengths.
Read the articlesTechnical support
We can help check your specific combination of lens, VND filter, adapter and ND extension filter.
Contact supportHave you checked compatibility?Complete your filter selection. If you are still unsure, our technical support team can help before you order.
Add filter to basketVFFOTO 86 mm ND 512× NANO-PRO US
Technical specifications
Filter and optical properties
- Filter type
- Magnetic fixed-density ND filter
- Diameter
- 86 mm
- Filter factor
- ND 512× · 9 stops
- Optical density
- ND 2.7
- Light transmission
- Approximately 0.195%
- Glass thickness
- 0.7 mm
- Anti-reflective coatings
- MRC coatings
- Nano coatings
- Easier cleaning and reduced adhesion of water and grease
Combined with VND 2–32×
- Combined range
- ND 1,024–16,384× · 10–14 stops
- Exposure adjustment
- Fine-tune the exposure by rotating the VND filter
At the same aperture and ISO: from 1/125 s without filters to approximately 8 s to 2 min 11 s, depending on the VND setting.
Construction and compatibility
- Frame
- US – ultra slim
- Frame material
- Aircraft-grade aluminium alloy
- Increase in setup height when mounted
- 2 mm
- Compatible filters
- VFFOTO 86 mm hybrid and magnetic filters
- Hybrid VND
- VFFOTO 77 mm hybrid VND 2–32× NANO-PRO TC filter: 77 mm rear thread, 86 mm front magnetic interface
- Magnetic VND
- VFFOTO 82 mm magnetic VND 2–32× NANO-PRO TC filter with an 86 mm front magnetic interface
Package contents
- 1× filter
- VFFOTO 86 mm ND 512× NANO-PRO US filter
- 1× case
- VFFOTO calibration case
